Motorcycle
ElecFreaks Wonder Building Kit #1
Case 1 of the ElecFreaks Wonder Building Kit: a two-motor motorcycle on the Wukong board. Turn it in 3D, build it step by step or open it in BrickLink Studio.
Loading 3D model…
Drag to turn the model, scroll to zoom.
Downloads
Building instructions (PDF)
Model for BrickLink Studio (zip)
BrickLink wanted list (XML)
Activity
Building guide
Custom parts for Studio
The Studio zip holds the model, the custom parts it needs and how to install them.
Building steps
The parts added in a step have a red outline.

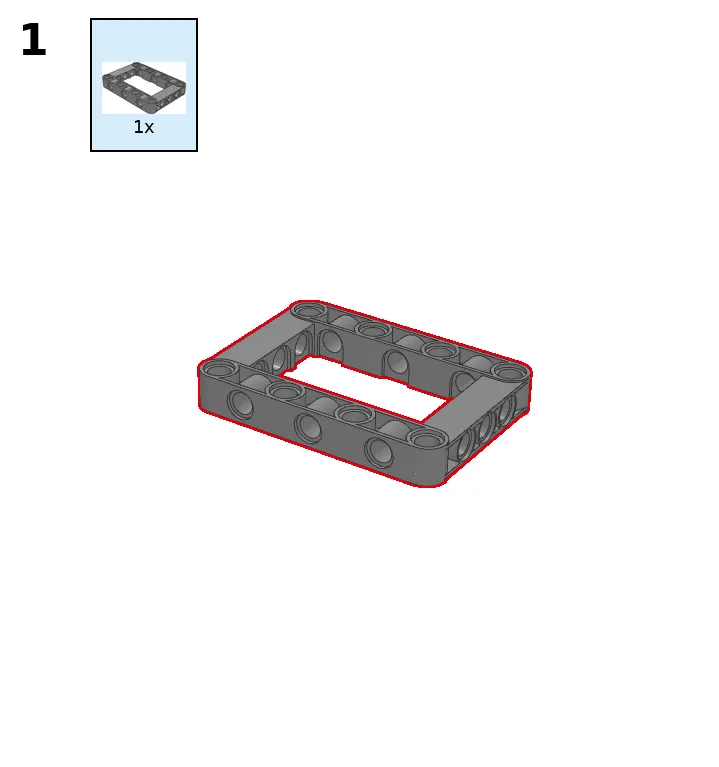

1.

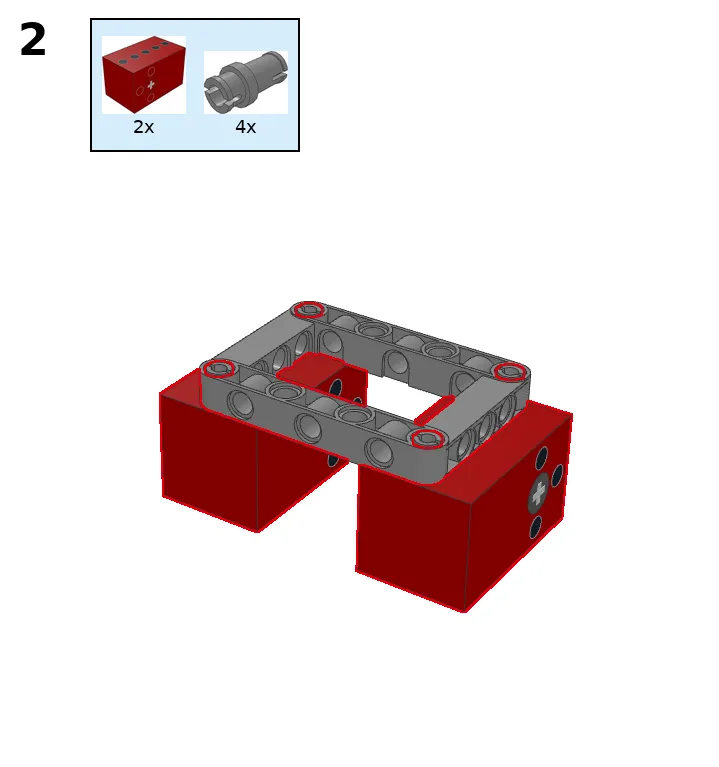

2.

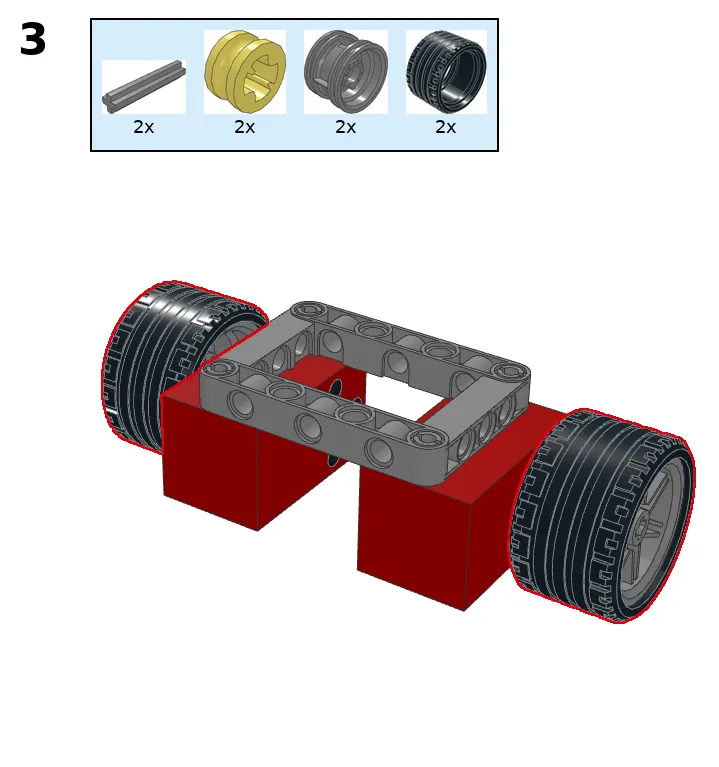

3.

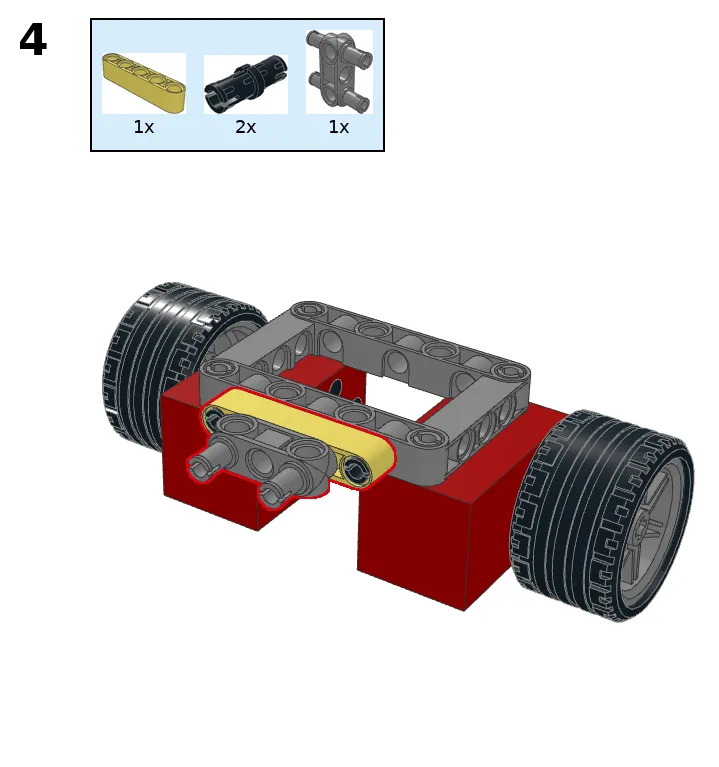

4.

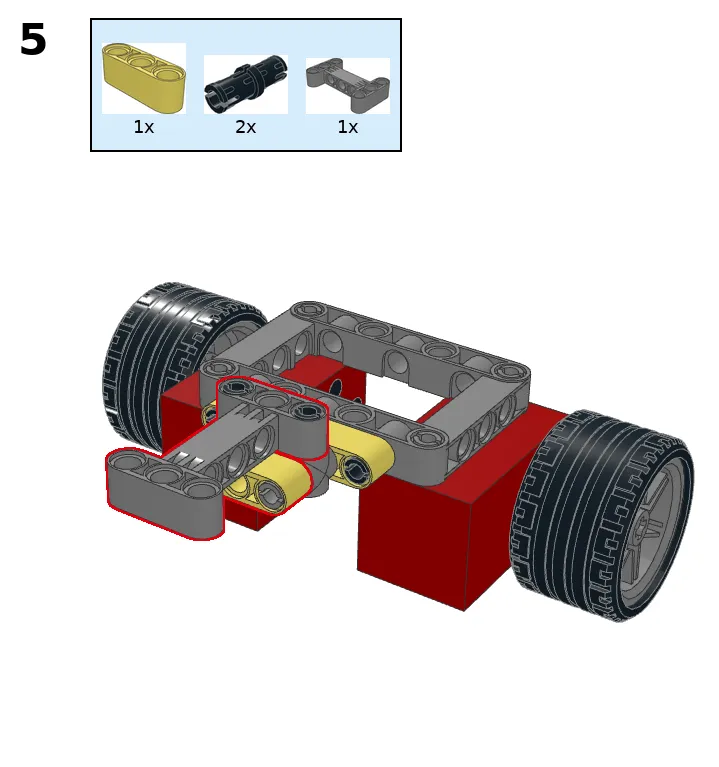

5.

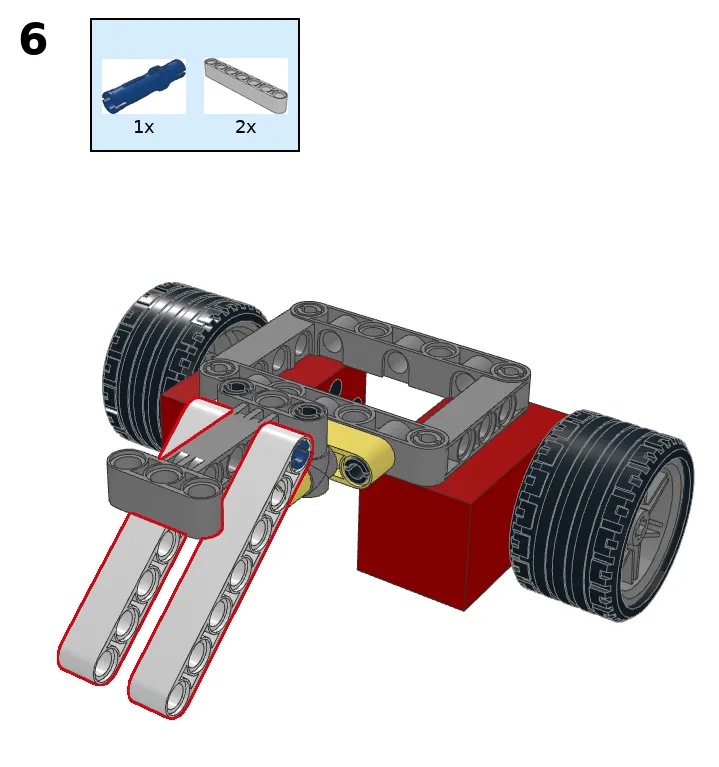

6.

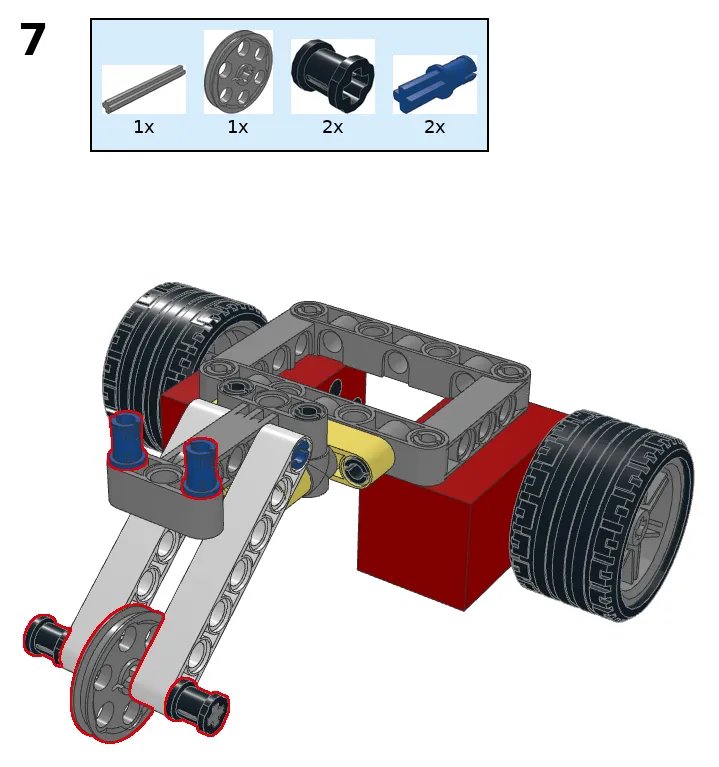

7.

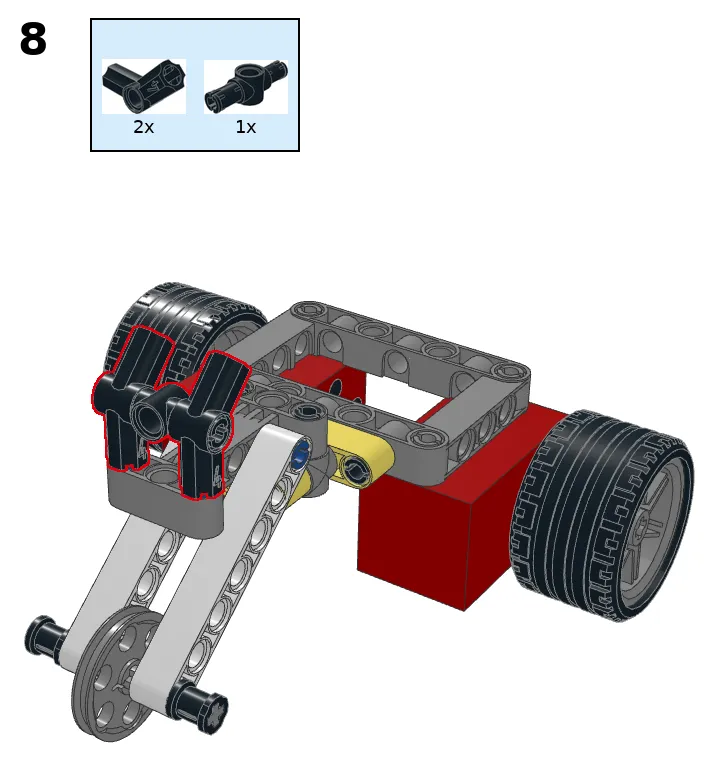

8.

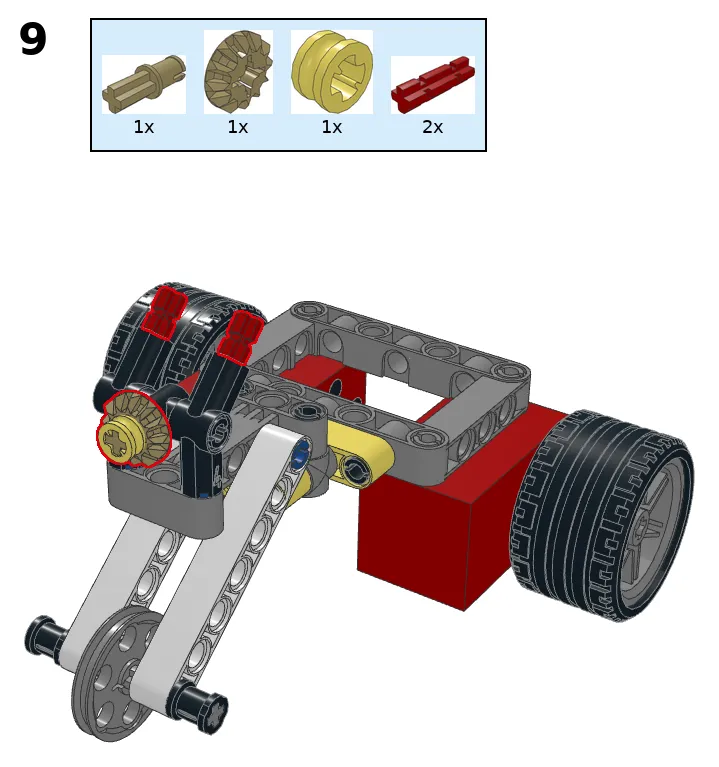

9.

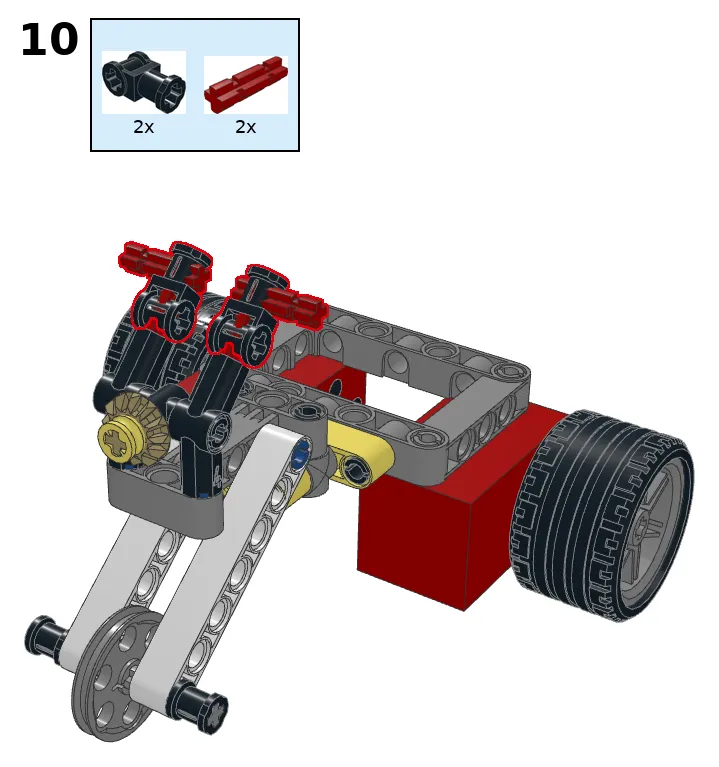

10.

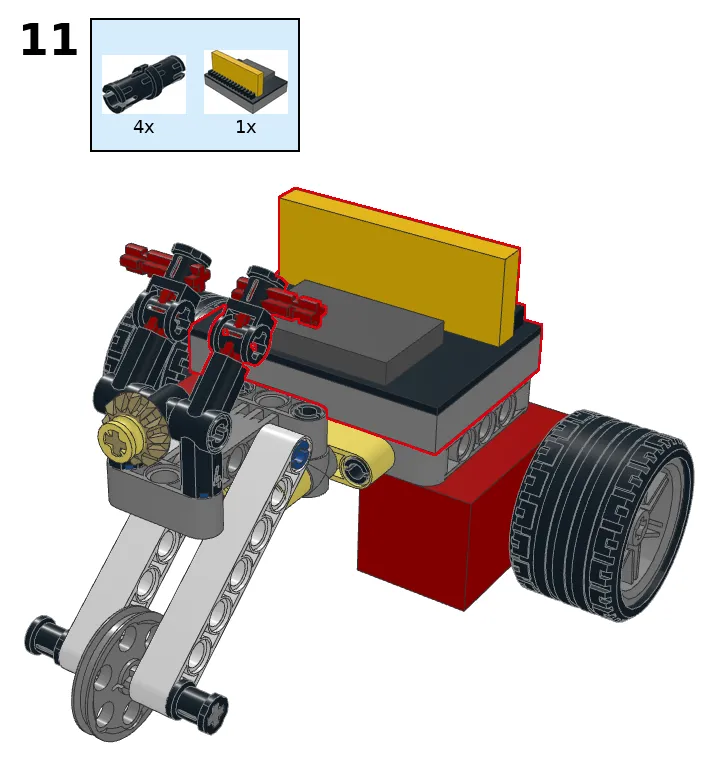

11.
Parts
| Part | Colour | Where to get it | Qty |
|---|---|---|---|
| Technic Beam 5 x 3 H-shaped | Light Bluish Gray | BrickLink 14720 | 1 |
| Technic Pin with Friction and Slots | Black | BrickLink 2780 | 8 |
| Technic Pin 3/4 | Light Bluish Gray | BrickLink 32002 | 4 |
| Technic Connector (Axle/Bush) | Black | BrickLink 32039 | 2 |
| Technic Axle 2 Notched | Red | BrickLink 32062 | 4 |
| Technic Axle 5 | Light Bluish Gray | BrickLink 32073 | 1 |
| Technic Angle Connector #4 (135 degree) | Black | BrickLink 32192 | 2 |
| Technic Beam 5 | Bright Light Yellow | BrickLink 32316 | 1 |
| Technic Beam 3 | Bright Light Yellow | BrickLink 32523 | 1 |
| Technic Beam 7 | White | BrickLink 32524 | 2 |
| Technic Bush with Two Flanges | Black | BrickLink 3713 | 2 |
| Technic Axle Pin | Tan | BrickLink 3749 | 1 |
| Technic Wedge Belt Wheel - Not Reinforced | Light Bluish Gray | BrickLink 4185 | 1 |
| Technic Bush 1/2 Smooth with Axle Hole Reduced | Bright Light Yellow | BrickLink 4265c | 3 |
| Technic Axle Pin with Friction | Blue | BrickLink 43093 | 2 |
| Technic Axle 3 | Light Bluish Gray | BrickLink 4519 | 2 |
| Technic Cross Block 1 x 3 (Pin/Pin/Pin) with 4 Pins | Light Bluish Gray | BrickLink 48989 | 1 |
| Tyre 22/ 14 x 30 ZR | Black | BrickLink 55978 | 2 |
| Wheel Rim 20 x 30 with 6 Spokes and External Ribs | Light Bluish Gray | BrickLink 56145 | 2 |
| Technic Beam 7 x 5 with Open Center 5 x 3 | Light Bluish Gray | BrickLink 64179 | 1 |
| Technic Pin Long with Friction and Slot | Blue | BrickLink 6558 | 1 |
| Technic Gear 12 Tooth Bevel | Tan | BrickLink 6589 | 1 |
| Technic Pin Long with Pin Hole Type 1 | Black | BrickLink 87082 | 1 |
| ElecFreaks Geekservo 2 kg motor (red) electronics | ElecFreaks | 2 | |
| ElecFreaks Wukong board on its 7 x 5 LEGO base electronics | ElecFreaks | 1 |
