Wukong mecanum racer
ElecFreaks Wonder Rugged Kit
A four-wheel racer on the Wukong board: four Geekservo motors turn its mecanum wheels, so it drives in every direction, sideways too. Turn it in 3D, build it step by step or open it in BrickLink Studio.
Loading 3D model…
Drag to turn the model, scroll to zoom.
Downloads
Building instructions (PDF)
Model for BrickLink Studio (zip)
BrickLink wanted list (XML)
Activity
Building guide
Custom parts for Studio
The Studio zip holds the model, the custom parts it needs and how to install them.
Building steps
The parts added in a step have a red outline.

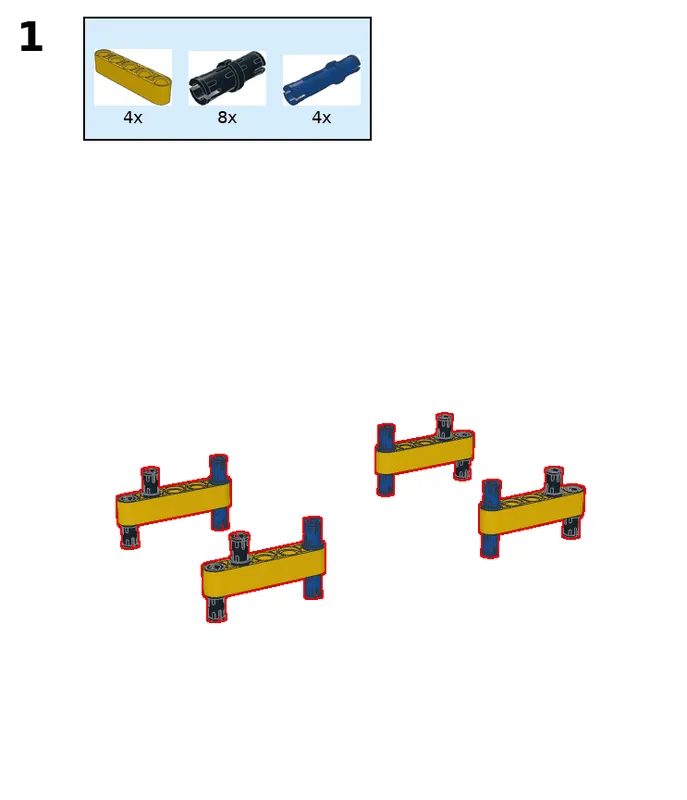

1.

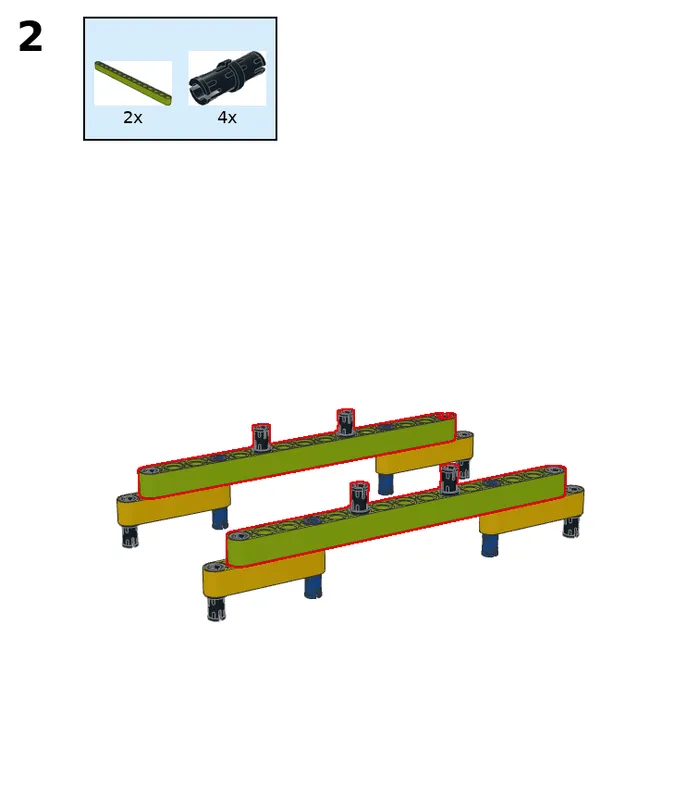

2.
3.

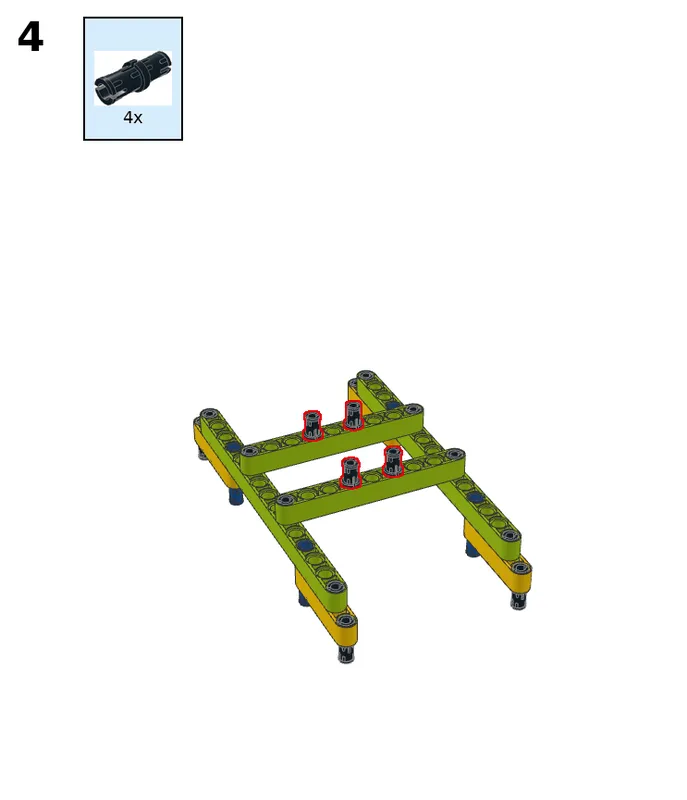

4.

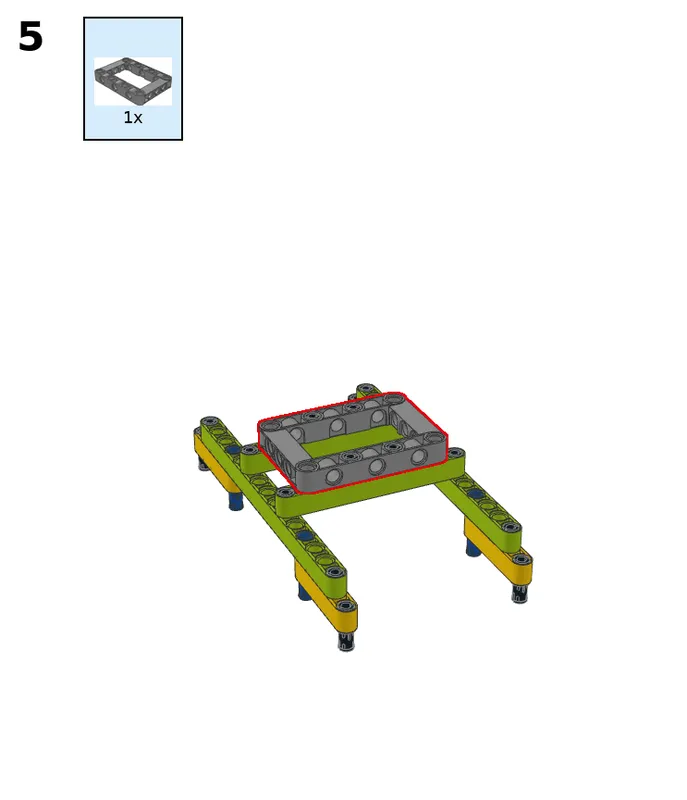

5.

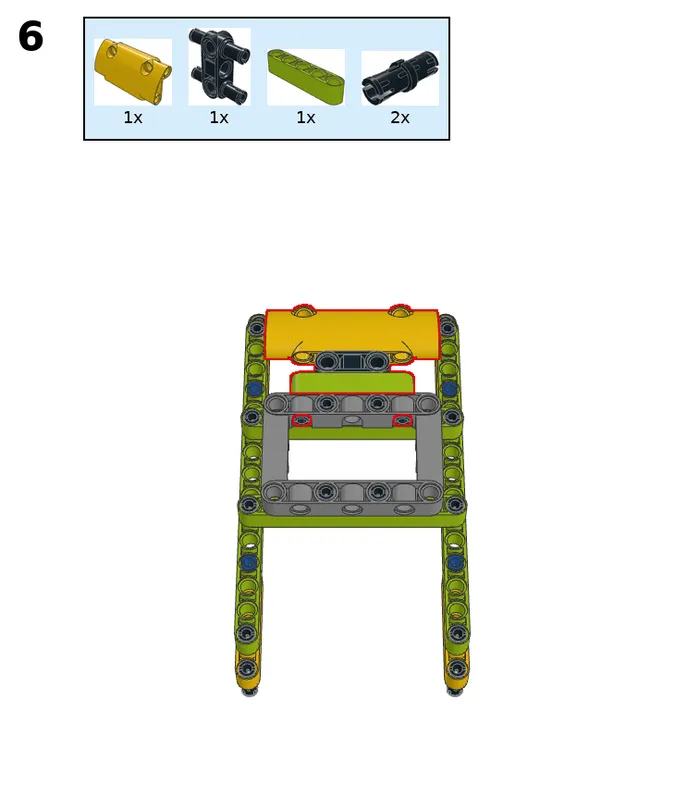

6.

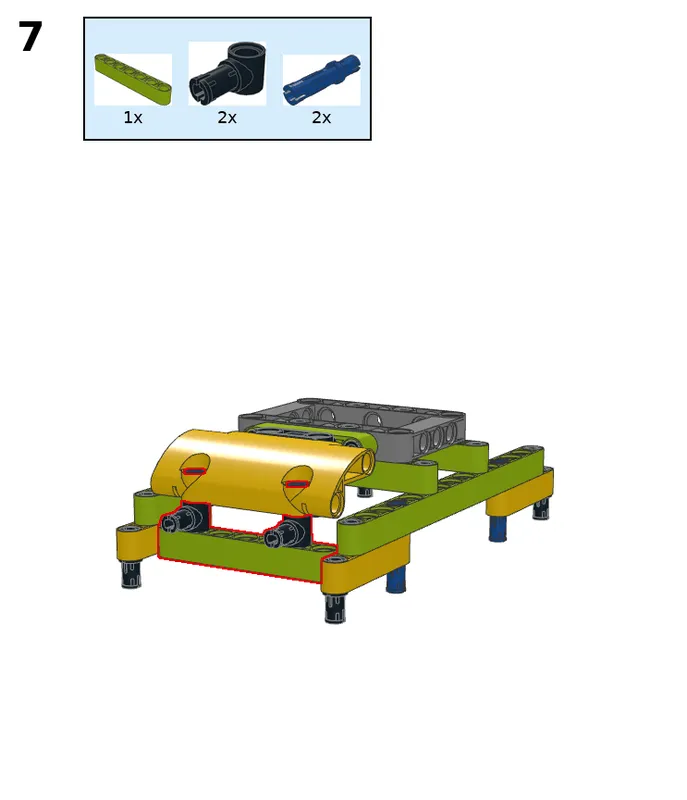

7.

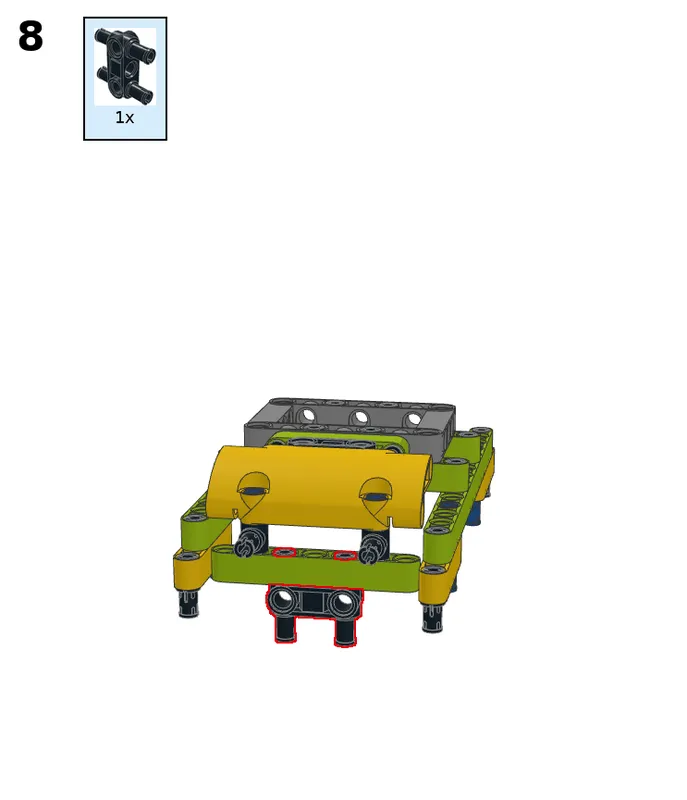

8.

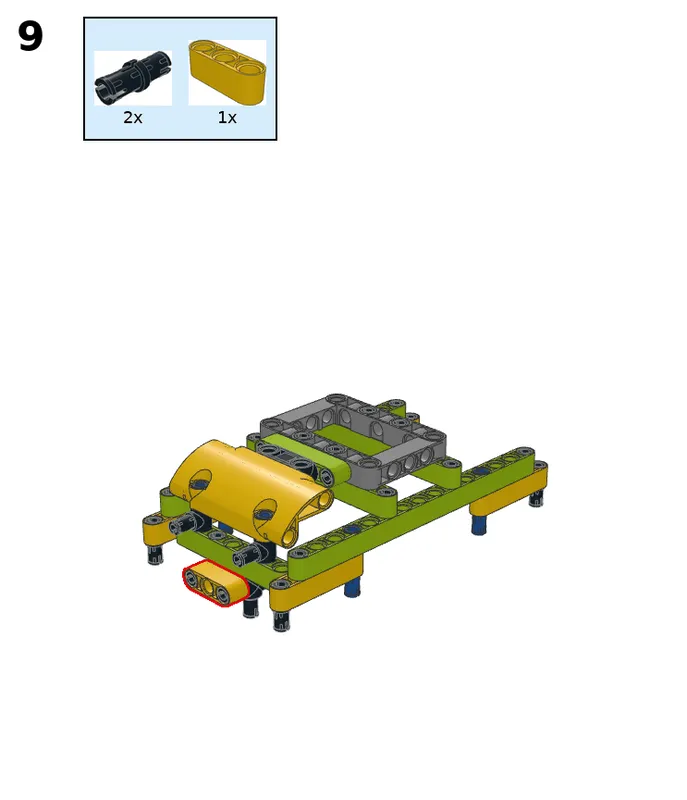

9.

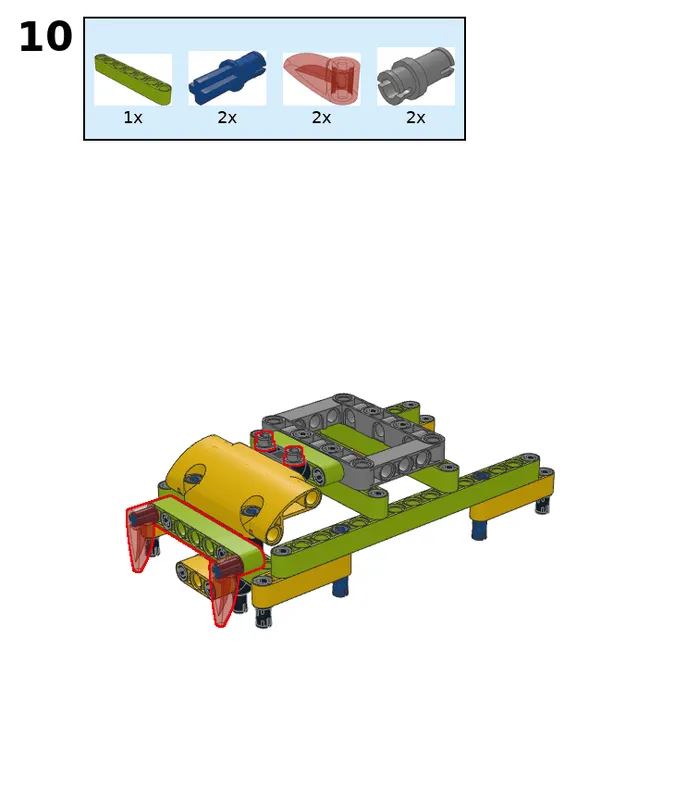

10.

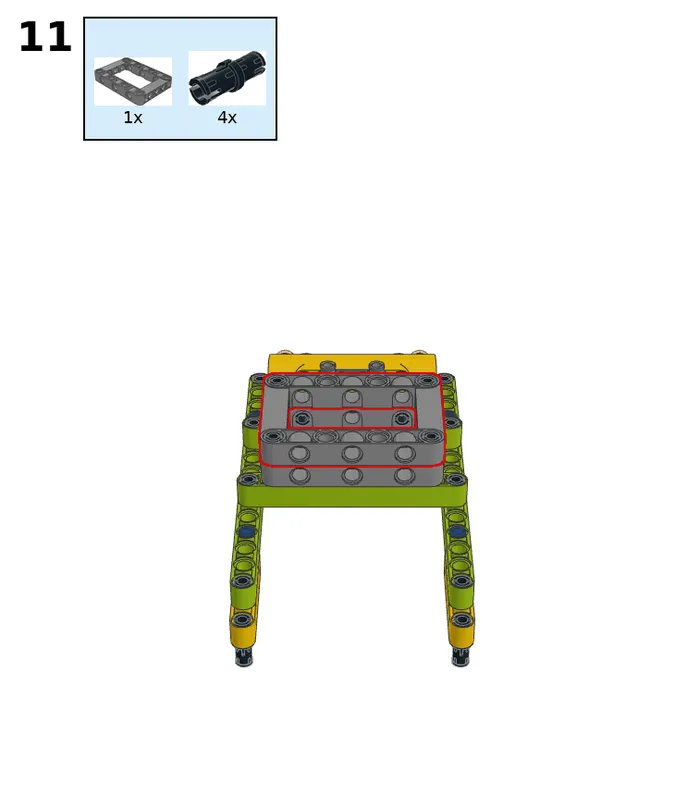

11.

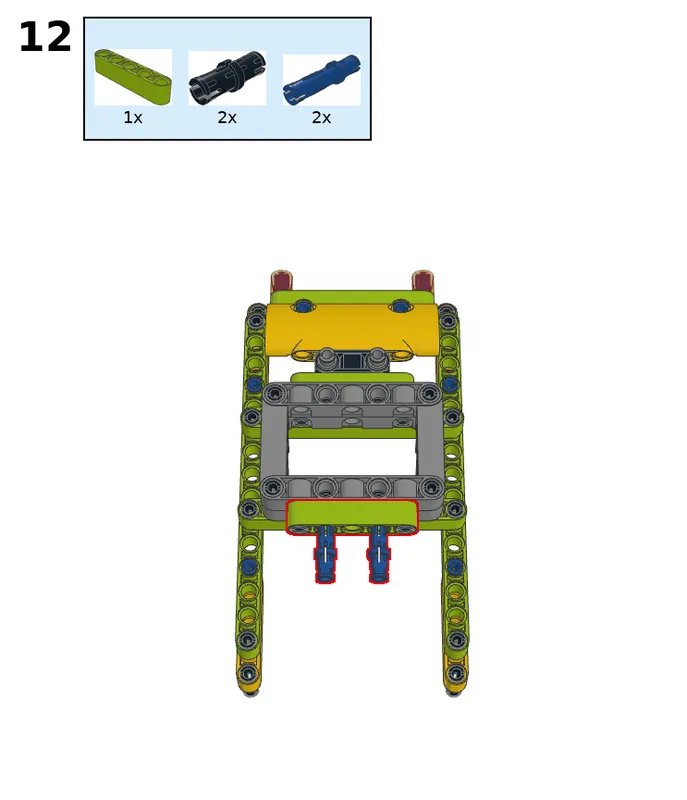

12.

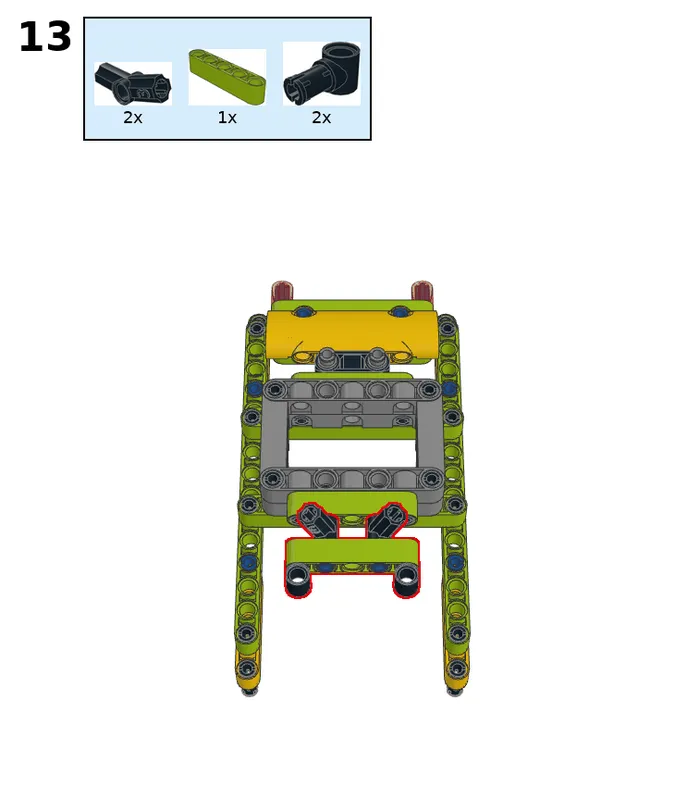

13.

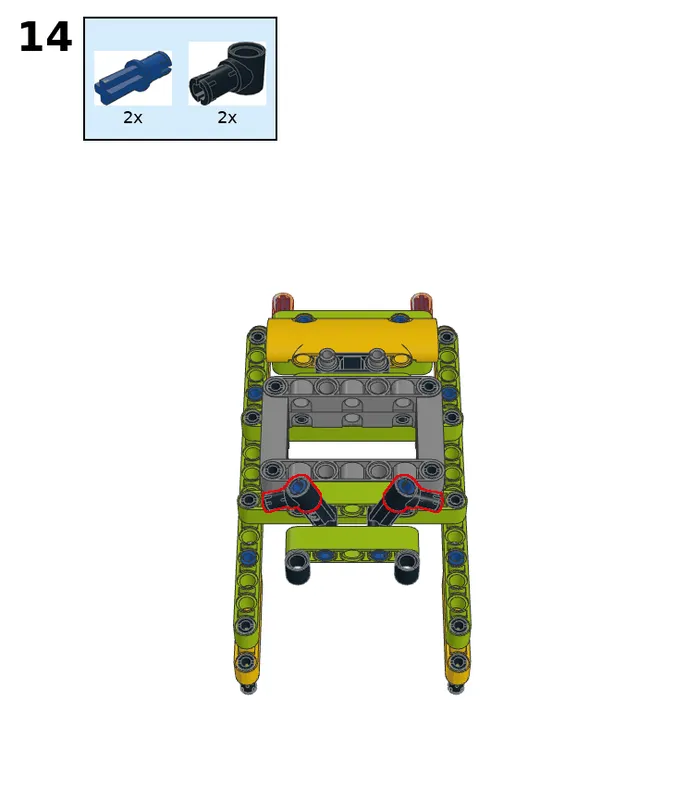

14.

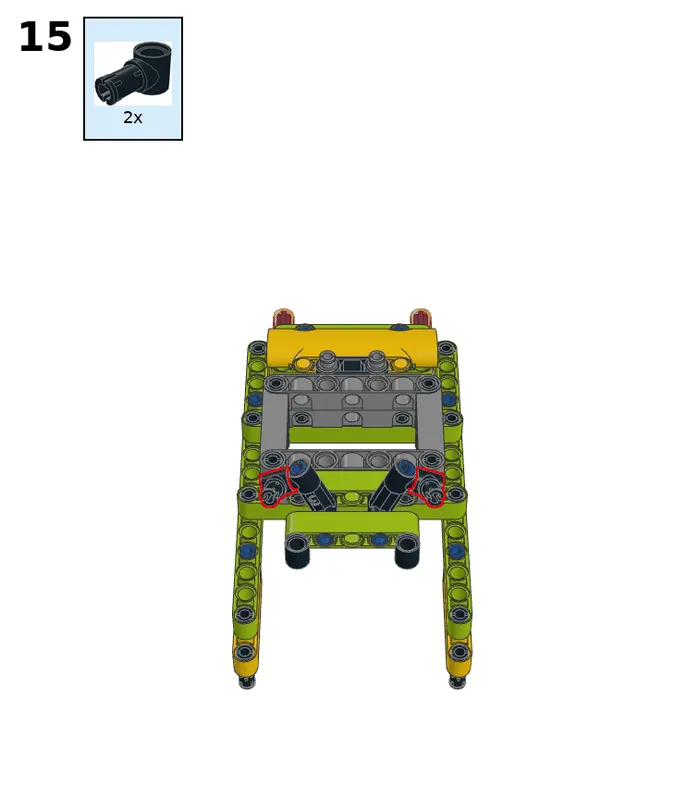

15.

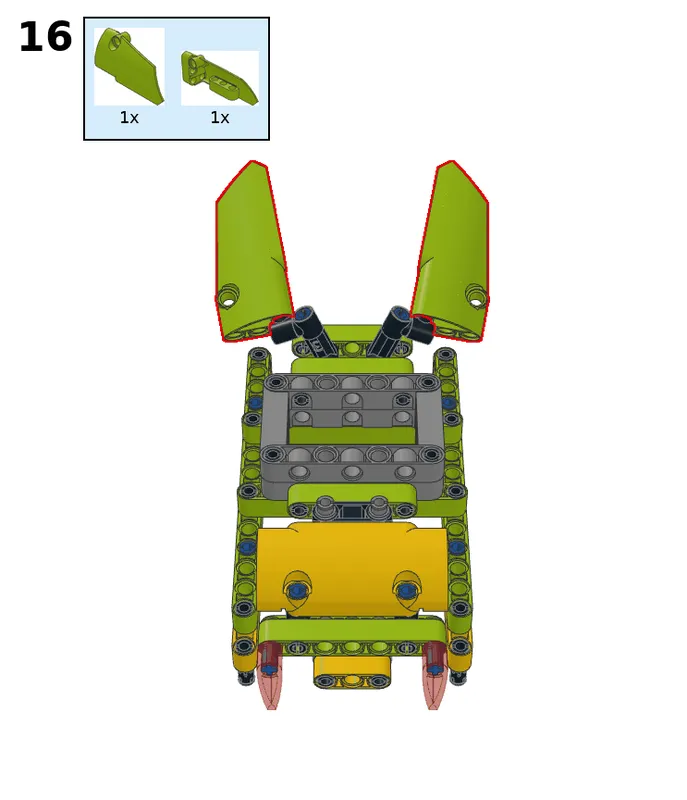

16.

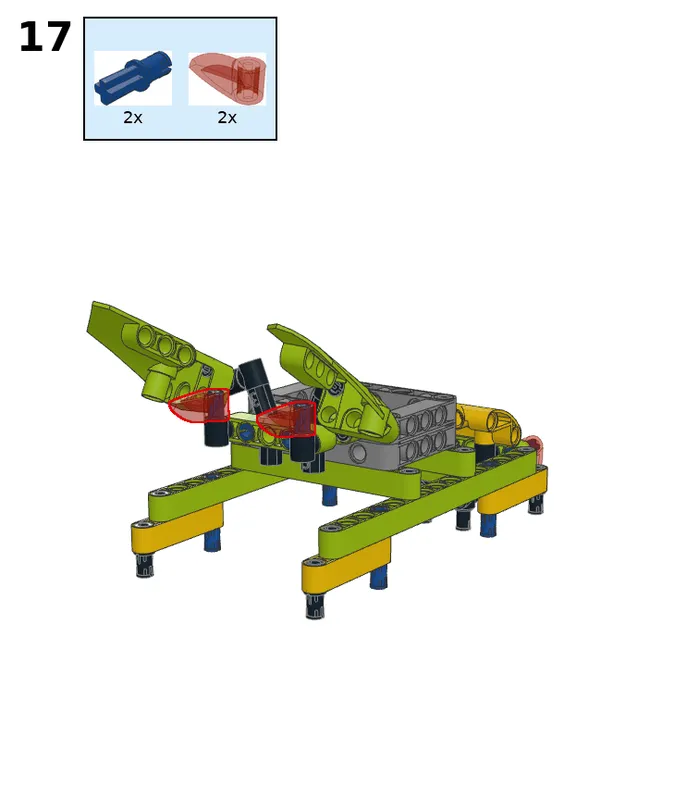

17.

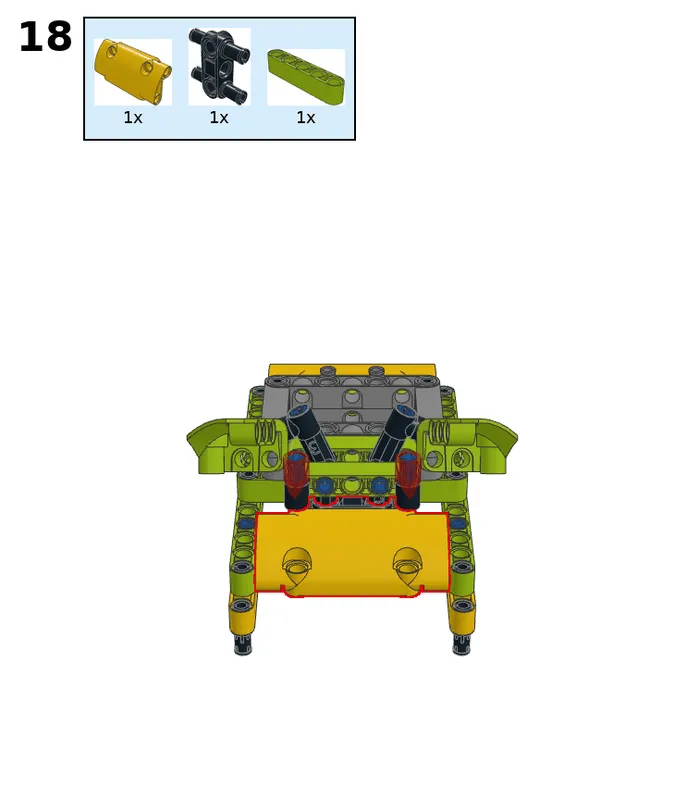

18.

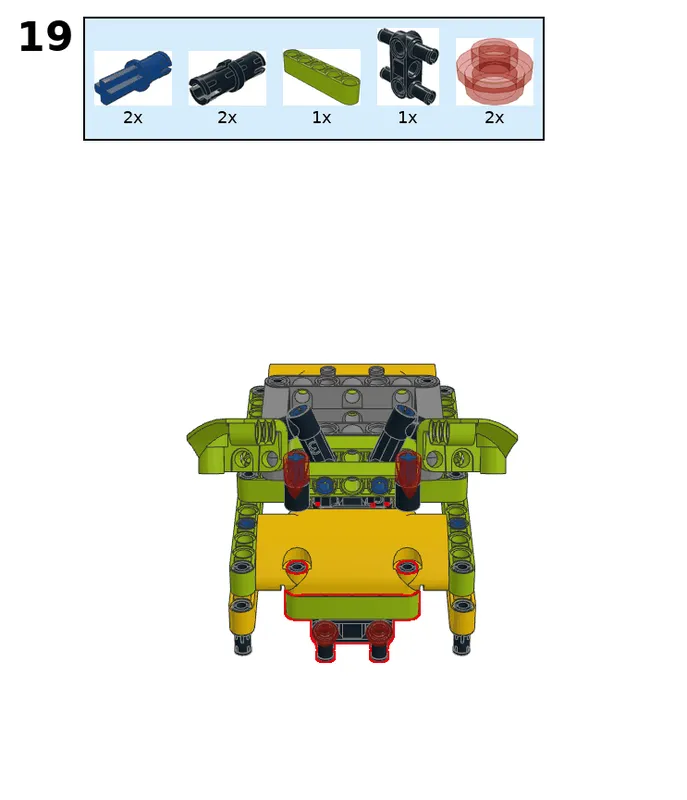

19.

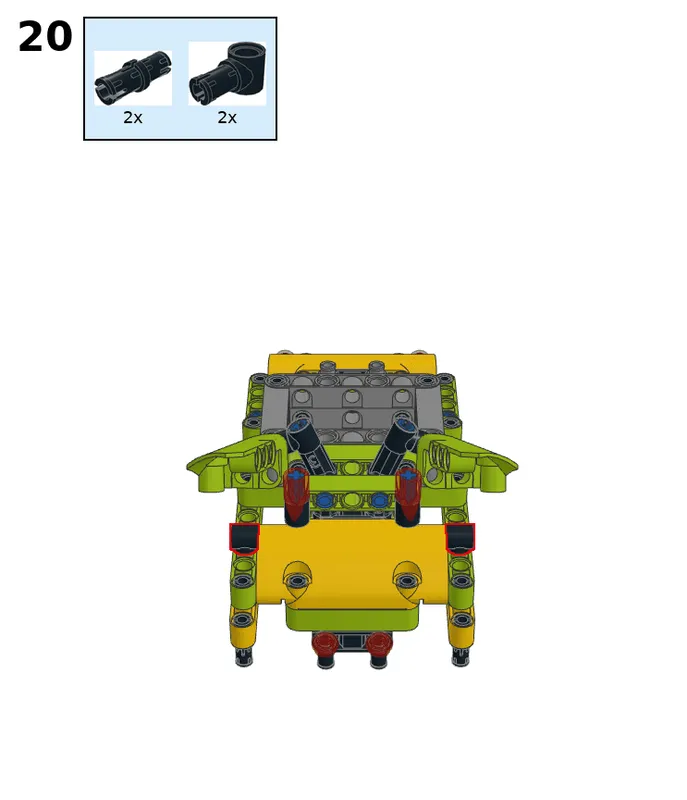

20.

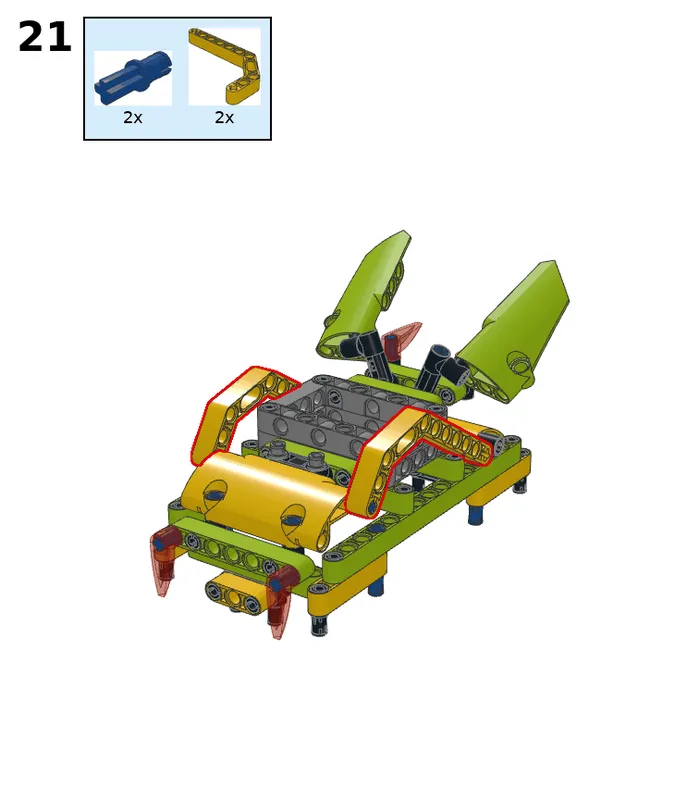

21.

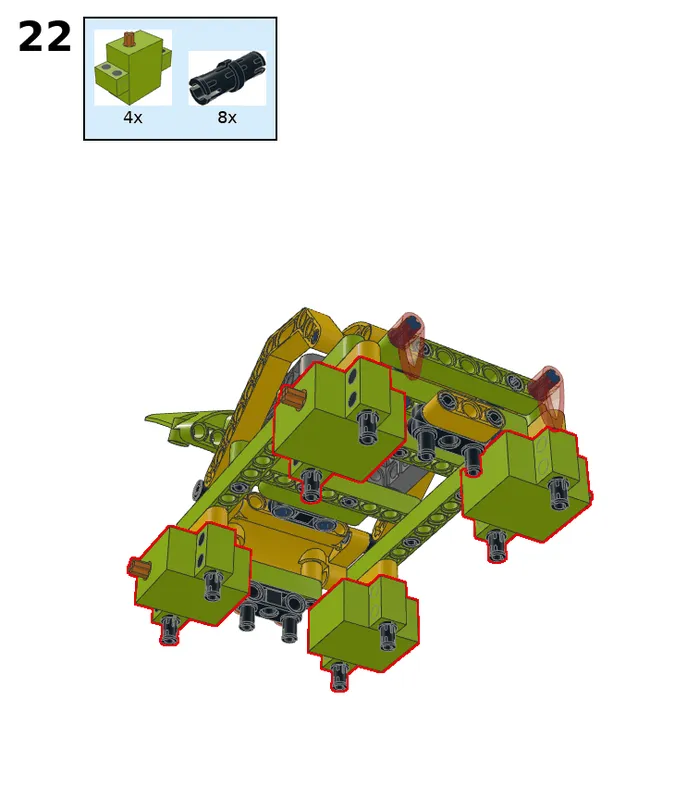

22.

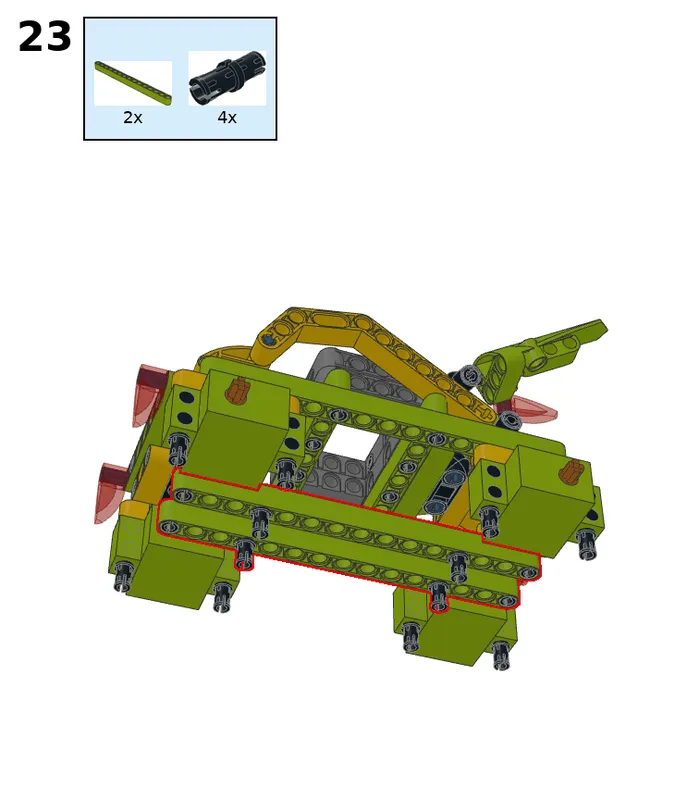

23.

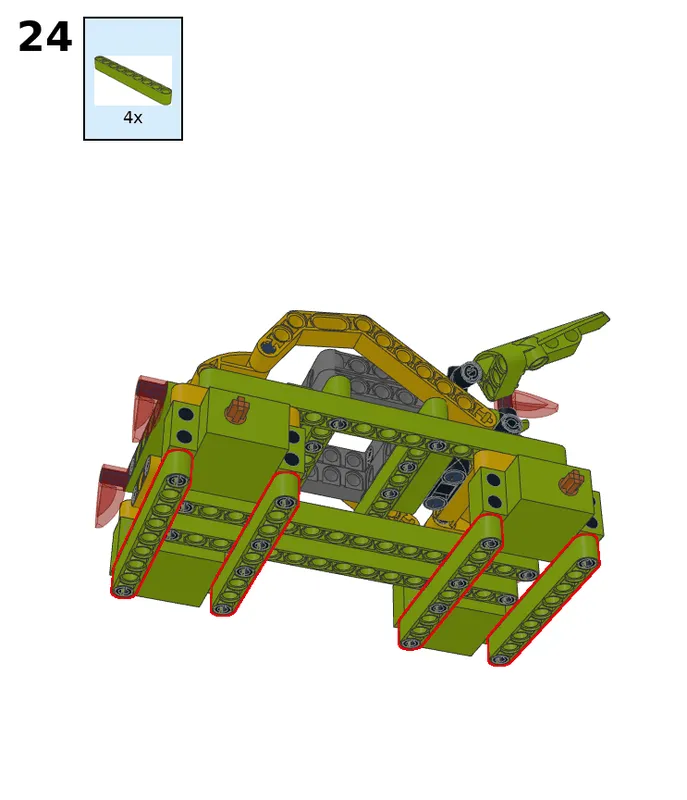

24.

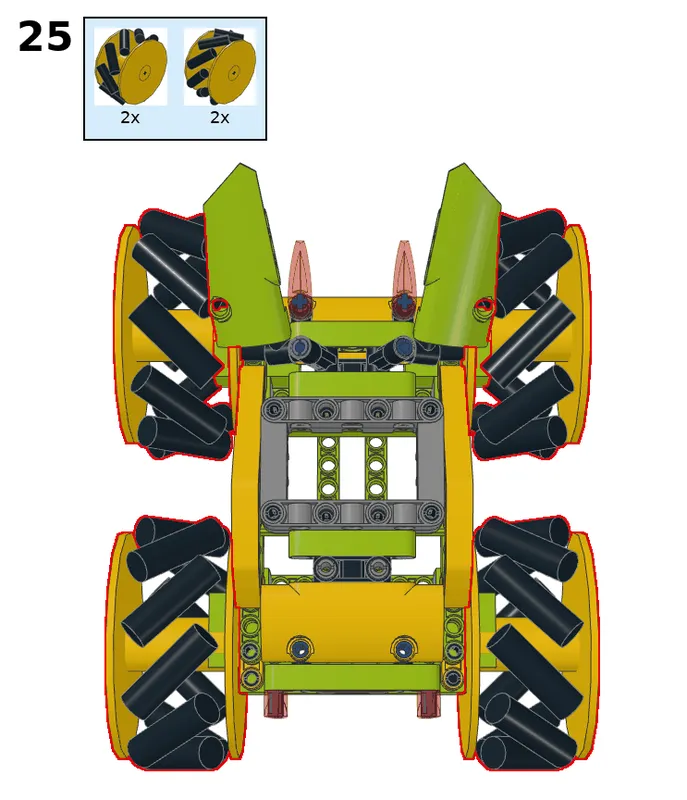

25.

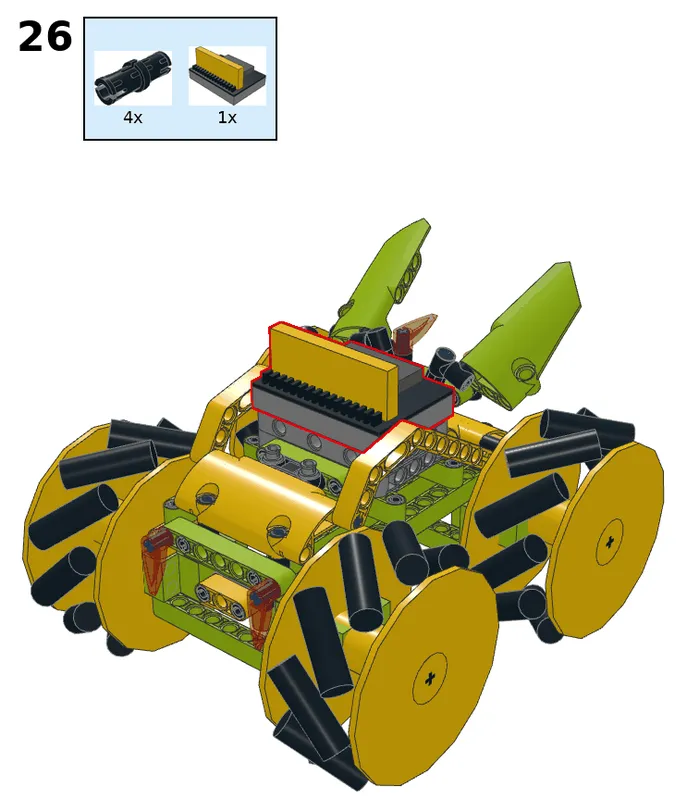

26.

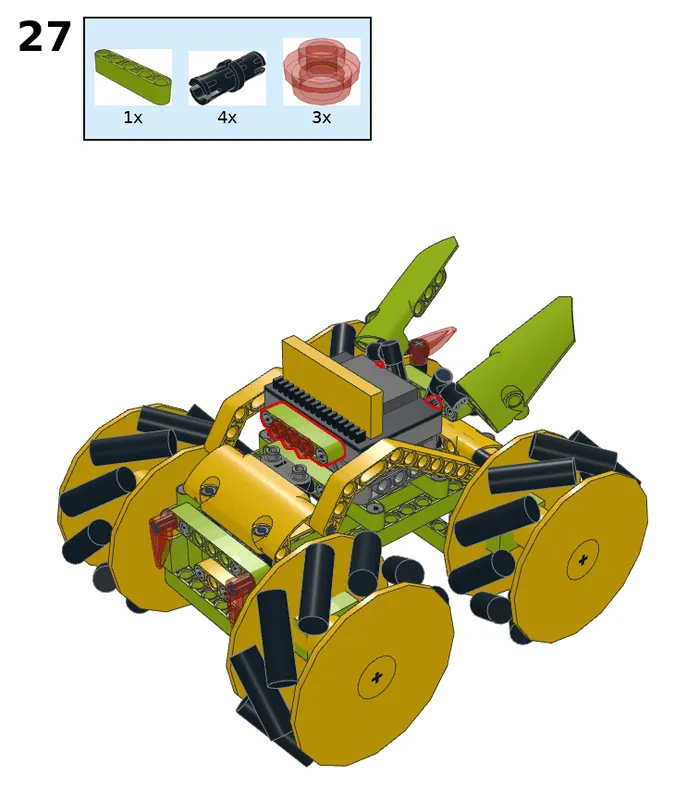

27.
Parts
| Part | Colour | Where to get it | Qty |
|---|---|---|---|
| Technic Pin with Friction with Perpendicular Pin Hole Type 1 | Black | BrickLink 15100 | 10 |
| Technic Panel Smooth 7 x 2 x 3 | Yellow | BrickLink 24119 | 2 |
| Technic Pin with Friction and Slots | Black | BrickLink 2780 | 50 |
| Technic Pin 3/4 | Light Bluish Gray | BrickLink 32002 | 2 |
| Technic Beam 3 x 3.8 x 7 Liftarm Bent 45 Double | Yellow | BrickLink 32009 | 2 |
| Technic Angle Connector #3 (157.5 degree) | Black | BrickLink 32016 | 2 |
| Technic Beam 15 | Lime | BrickLink 32278 | 4 |
| Technic Beam 5 | Yellow | BrickLink 32316 | 4 |
| Technic Beam 5 | Lime | BrickLink 32316 | 6 |
| Technic Beam 3 | Yellow | BrickLink 32523 | 1 |
| Technic Beam 7 | Lime | BrickLink 32524 | 2 |
| Technic Beam 9 | Lime | BrickLink 40490 | 6 |
| Technic Tooth 1 x 3 with Axlehole | Trans-Red | BrickLink 41669 | 4 |
| Technic Axle Pin with Friction | Blue | BrickLink 43093 | 10 |
| Technic Cross Block 1 x 3 (Pin/Pin/Pin) with 4 Pins | Black | BrickLink 48989 | 4 |
| Technic Beam 7 x 5 with Open Center 5 x 3 | Light Bluish Gray | BrickLink 64179 | 2 |
| Technic Panel Fairing Smooth #4 (Medium) | Lime | BrickLink 64391 | 1 |
| Technic Panel Fairing Smooth #3 (Medium) | Lime | BrickLink 64683 | 1 |
| Technic Pin Long with Friction and Slot | Blue | BrickLink 6558 | 8 |
| Plate 1 x 1 Round with Open Stud | Trans-Red | BrickLink 85861 | 5 |
| ElecFreaks Geekservo 360° servo (green) electronics | 4 | ||
| ElecFreaks mecanum wheel 80 mm (left) electronics | 2 | ||
| ElecFreaks mecanum wheel 80 mm (right) electronics | 2 | ||
| ElecFreaks Wukong board on its 7 x 5 LEGO base electronics | ElecFreaks | 1 |
